Brand: Kipp

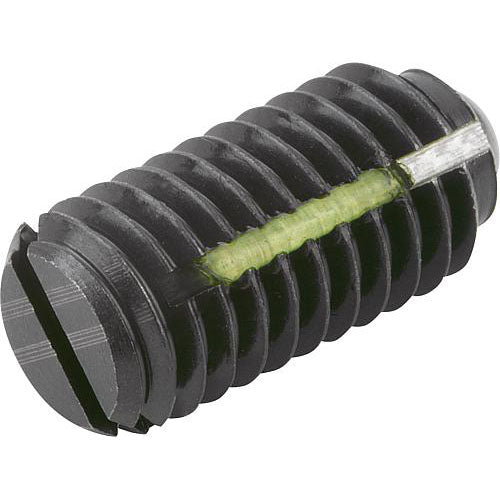

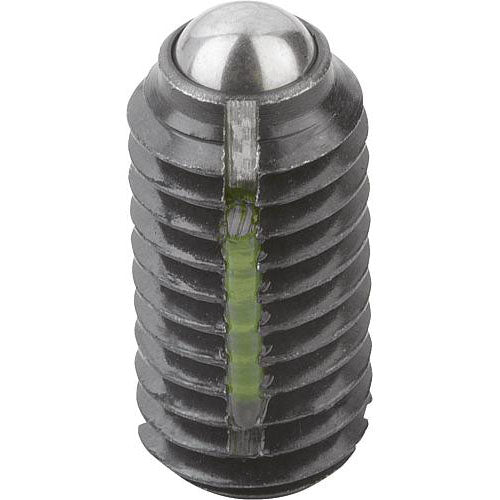

KIPP K0321.2AJ SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=1/4-28 L=14, STEEL, COMP:BALL STEEL, PU=10
SKU: KP-K0321.2AJ
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock ball style, slotted, steel, heavy end pressure, inch

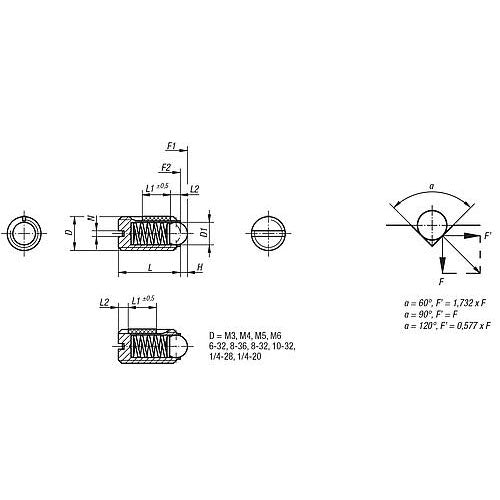

Material: Body steel quality class 5.8. Ball steel. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Ball hardened. Part Number Example: K0321.AD Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
Main Material: | Steel |
Version 1: | With Thread Lock |
Item: | Spring Plunger |
Packaging Unit: | 10 |
Pin Style: | Ball |
Carrier Style: | Slot |
Loosening Torque Approx. Nm: | 0.21 |
D: | 1/4-28 |
D1: | 3.5 |
Tightening Torque Approx. Nm: | 0.43 |
Spring Strength: | Intensified |
Spring Force Initial Pressure F1 Approx. N: | 28 |
Spring Force Final Pressure F2 Approx. N: | 40 |
H: | 1 |
L: | 14 |
L1: | 7 |
N: | 1 |
