Brand: Kipp

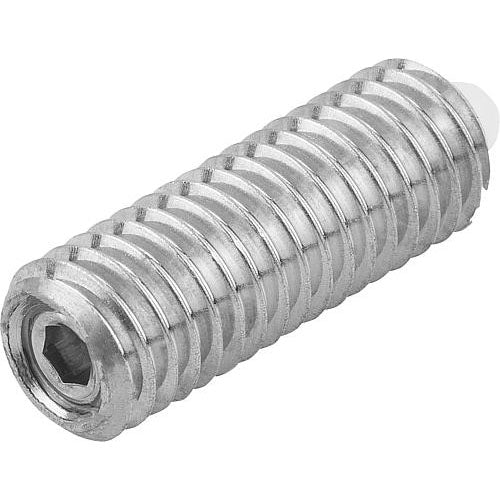

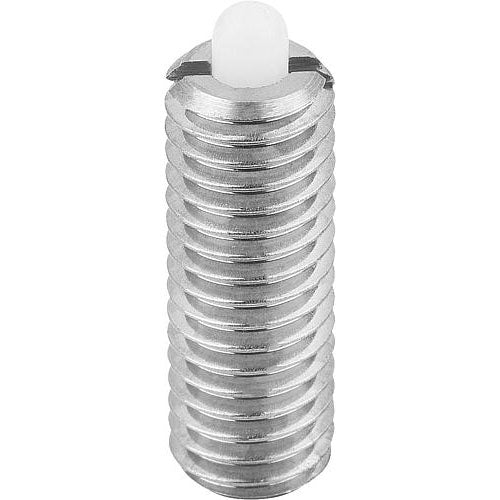

KIPP K0320.A6 SPRING PLUNGER STANDARD SPRING FORCE D=5/8-11 L=32, STAINLESS STEEL, COMP:PIN POM
SKU: KP-K0320.A6
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers pin style, hexagon socket, stainless steel body, plastic pin, standard end pressure, inch

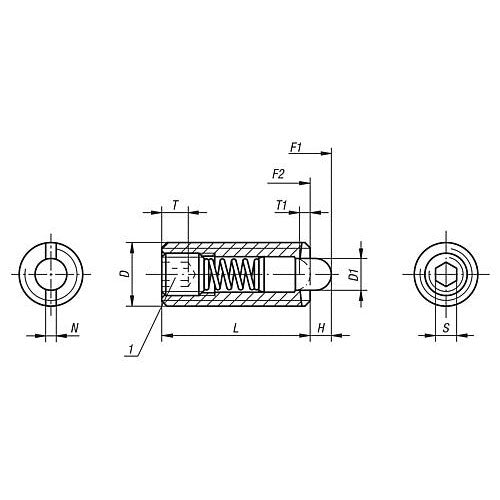

Material: body 1.4305 (AISI 303 equivalent). Thrust pin POM. Spring 1.4310 (AISI 301 equivalent). Type: Bright. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in
| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Pin Style: | Thrust Pin |
| Carrier Style: | Hexagon Socket |
| D: | 5/8-11 |
| D1: | 7.5 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 45 |
| Spring Force Final Pressure F2 Approx. N: | 100 |
| H: | 5 |
| L: | 32 |
| N: | 2.5 |
| S: | 3/16 |
| T: | 6 |
| T1: | 2.5 |
