Brand: Kipp

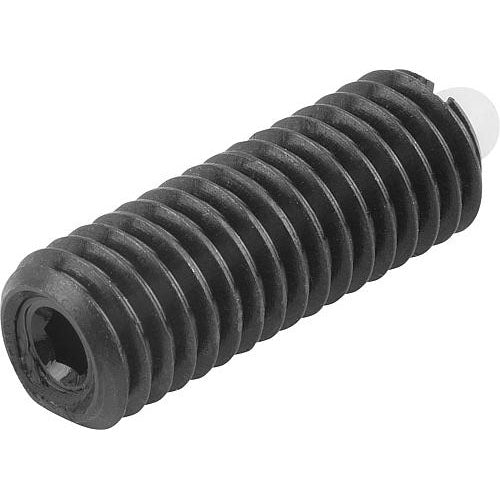

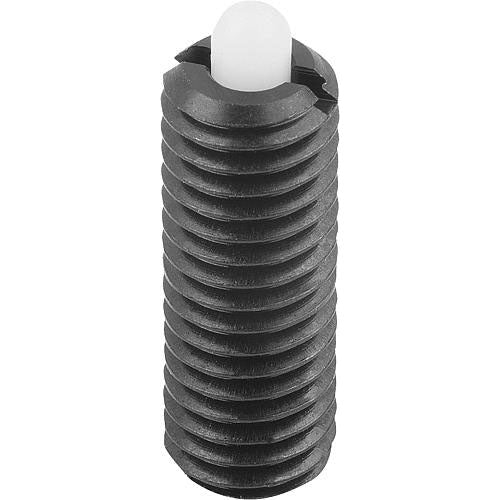

KIPP K0318.AD SPRING PLUNGER STANDARD SPRING FORCE D=6-32 L=10, STEEL, COMP:PIN POM, PU=25
SKU: KP-K0318.AD
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers pin style, hexagon socket, plastic pin, standard end pressure, inch

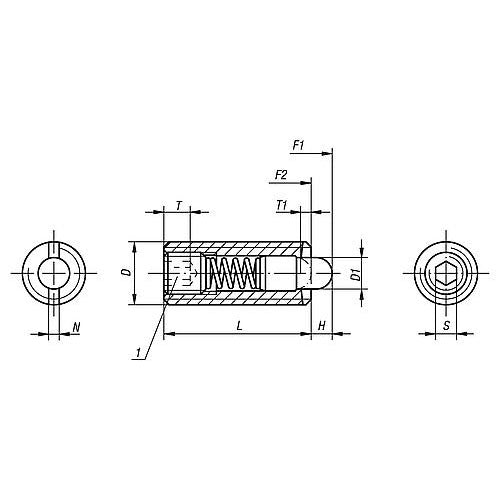

Material: body steel grade 5.8. Thrust pin POM. Spring grade D steel wire. Type: Black oxidized. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in
Main Material: | Steel |
Item: | Spring Plunger |
Rohs: | Yes |
Packaging Unit: | 25 |
D: | 6-32 |
D1: | 1 |
Spring Strength: | Standard |
Spring Force Initial Pressure F1 Approx. N: | .5 |
Spring Force Final Pressure F2 Approx. N: | 3 |
H: | 1.5 |
L: | 10 |
N: | 0.4 |
S: | 0.035 |
T: | 1.5 |
T1: | 1 |
