Brand: Kipp

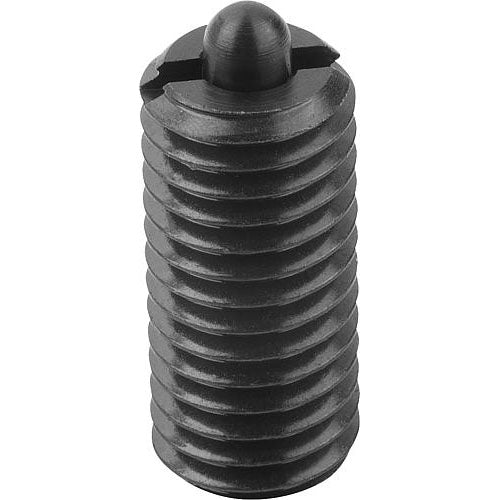

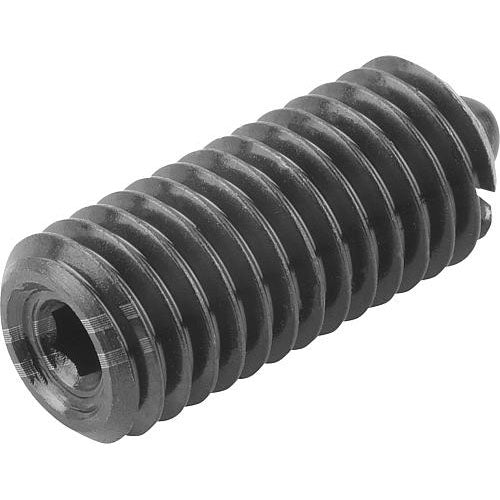

KIPP K0317.2A3 SPRING PLUNGER INTENSIFIED SPRING FORCE D=5/16-18 L=22, STEEL, COMP:PIN STEEL, PU=10
SKU: KP-K0317.2A3
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers pin style, hexagon socket, steel pin, heavy end pressure, inch

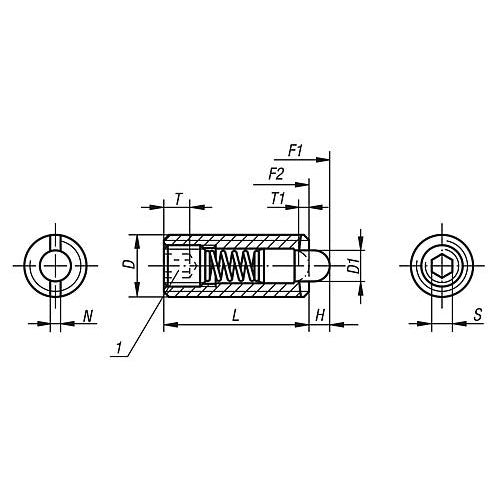

Material: Body steel quality class 5.8. Thrust pin steel. Spring Class D steel wire. Type: Black oxide finish. Thrust pin hardened. Part Number Example: K0317.AD Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: 1) grub screw glued in
Main Material: | Steel |
Item: | Spring Plunger |
Packaging Unit: | 10 |
D: | 5/16-18 |
D1: | 3.5 |
Spring Strength: | Intensified |
Spring Force Initial Pressure F1 Approx. N: | 22 |
Spring Force Final Pressure F2 Approx. N: | 65 |
H: | 3 |
L: | 22 |
N: | 1.2 |
S: | 3/32 |
T: | 3 |
T1: | 1.4 |
