Brand: Kipp

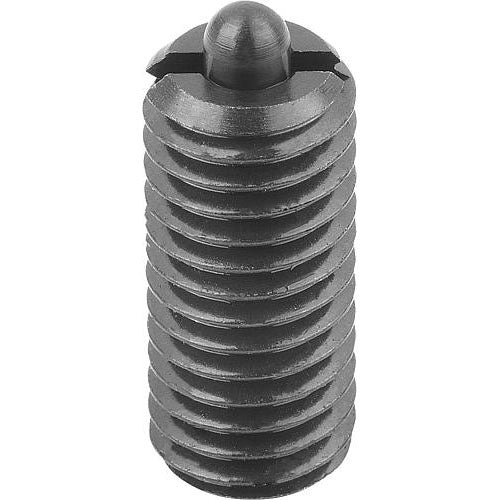

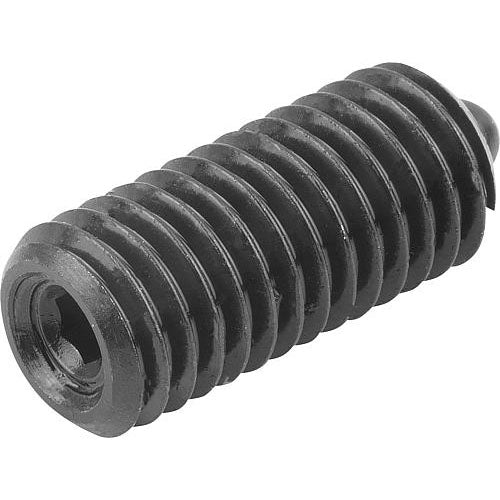

KIPP K0317.03 SPRING PLUNGER STANDARD SPRING FORCE D=M03 L=10, STEEL, COMP:PIN STEEL
SKU: KP-K0317.03
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers pin style, hexagon socket, steel pin, standard end pressure, metric
Material: Sleeve steel grade 5.8. Thrust pin steel. Spring in spring steel class D. Version: Black oxidised. Thrust pin hardened.
| Main Material: | Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Pin Style: | Thrust Pin |
| Carrier Style: | Hexagon Socket |

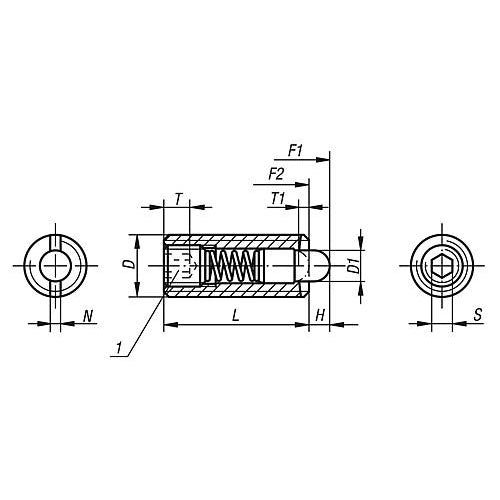

| D: | M3 |
| D1: | 1 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 0.5 |
| Spring Force Final Pressure F2 Approx. N: | 3 |
| H: | 1.5 |
| L: | 10 |
| Assembly Key G: | 11 |
| N: | 0.4 |
| S: | 0.7 |
| T: | 1.5 |
| T1: | 1 |
