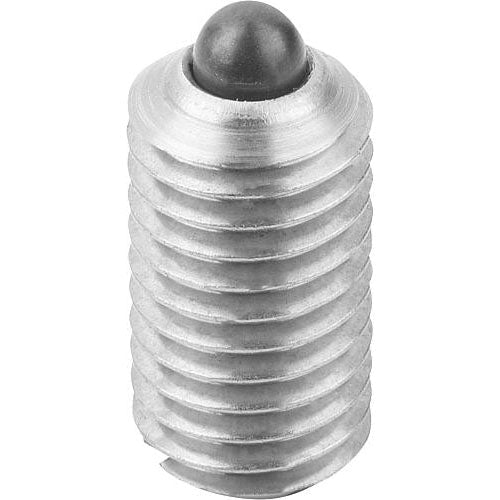

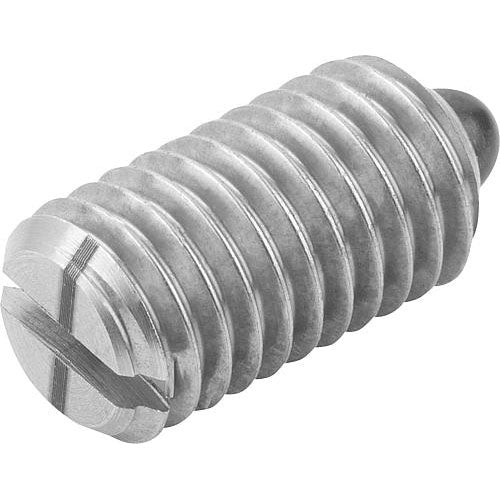

Brand: Kipp
KIPP K0314.1A6 SPRING PLUNGER LIGHT SPRING FORCE D=5/8-11 L=24, STAINLESS STEEL, COMP:PIN STAINLESS STEEL, PU=5
SKU: KP-K0314.1A6
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers pin style, slotted, stainless steel, light end pressure, inch

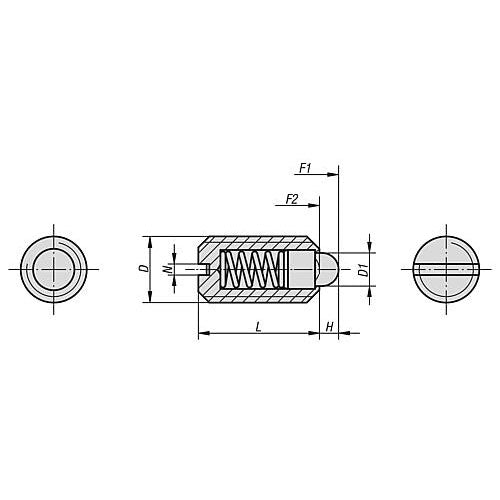

Material: Type: Bright. Thrust pin hardened. Part Number Example: K0314.AG Note: For the inch series, dimension D is in inches, all other dimensions are in mm.
| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 5 |
| D: | 5/8-11 |
| D1: | 8.5 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 22 |
| Spring Force Final Pressure F2 Approx. N: | 50 |
| H: | 4.5 |
| L: | 24 |
| N: | 2.5 |
