Brand: Iscar

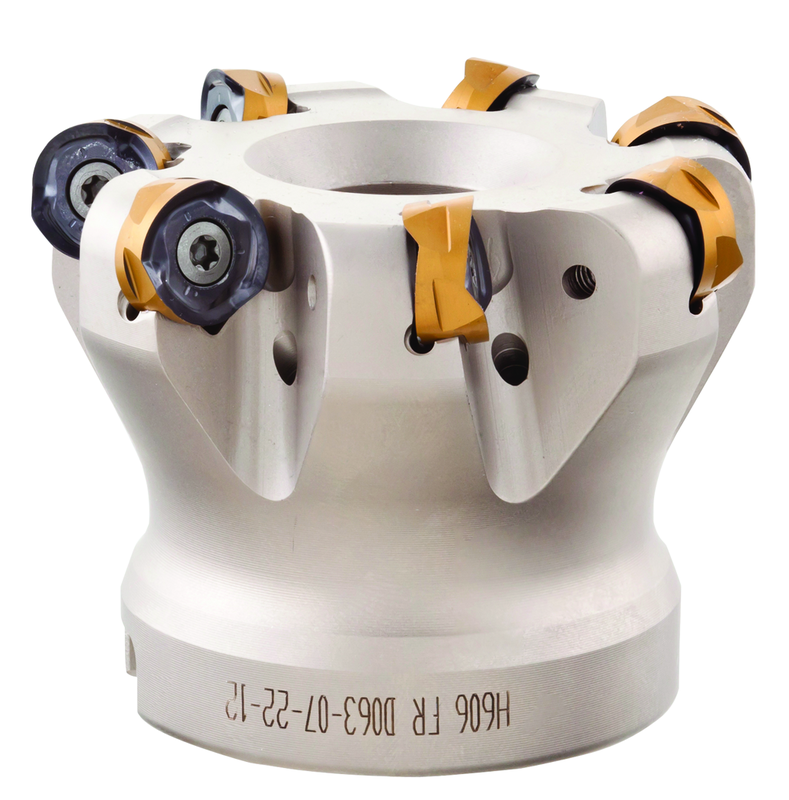

Iscar EH3106103 H606 FR D080-08-27-12

SKU: FTS-EH3106103
MPN: 3106103

$1,026.84
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Iscar 3106103 H606 FR D080-08-27-12

Full Description

Cutting Diameter (DC/DCX)	80 mm	Arbor Style	A
Cutting Diameter (DC)	68 mm	Master Insert Identification (MIID)	H606 RXCU 1206-AXMP
Cutting Diameter Maximum (DCX)	80 mm	Coolant Supply Property (CSP)	Through Hole
Cutting Item Count (CICT)	8	Body Material	Steel
Depth of Cut Maximum (APMX)	6 mm	Cutting Direction (HAND)	Right Hand
Connection Diameter Machine Side (DCONMS)	27 mm	Application	\| Facing \| Helical Interpolation \| Profiling \| Rampdown \|
Overall Length (OAL)	50 mm	Measurement Type	Metric
Hub Diameter (DHUB)	58 mm	Tool Type	Round corner cutters

Family Description

Face mills carrying double-sided round inserts with six cutting edges.
