Brand: Iscar

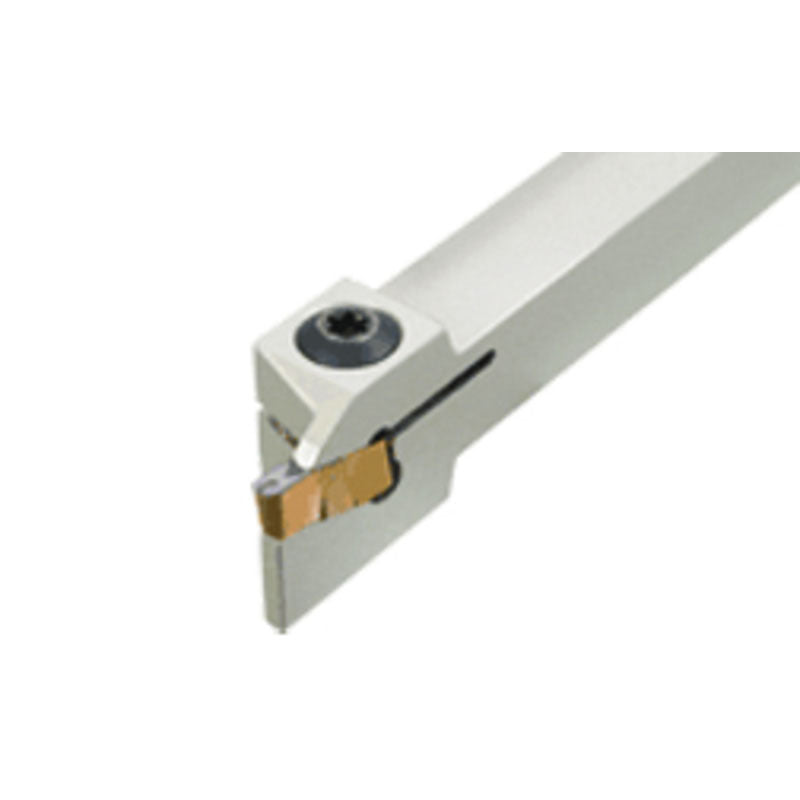

Iscar EH2800152 GHDR 19-2

SKU: FTS-EH2800152
MPN: 2800152

$197.91
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Iscar 2800152 GHDR 19-2

Full Description

Cutting Width Minimum (CWN)	0.016"	Overall Length (OAL)	4-1/2"
Cutting Width Maximum (CWX)	1/8"	Coolant Supply Property (CSP)	External
Cutting Depth Maximum (CDX)	0.33"	Application	\| Ext. Grooving \| Ext. Grooving & Turning \| Ext. Profiling \| Parting \| Pulley V Grooving \| Threading (Ext.) Groove Turn T \|
Shank Height (H)	3/4"	Body Material	Steel
Functional Width (WF)	0.72"	Tool Type	Turn-Groove Tools
Head Length (LH)	1"	Measurement Type	Inch

Family Description

External tools for turning, grooving and parting.

For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"
