Brand: DESTACO

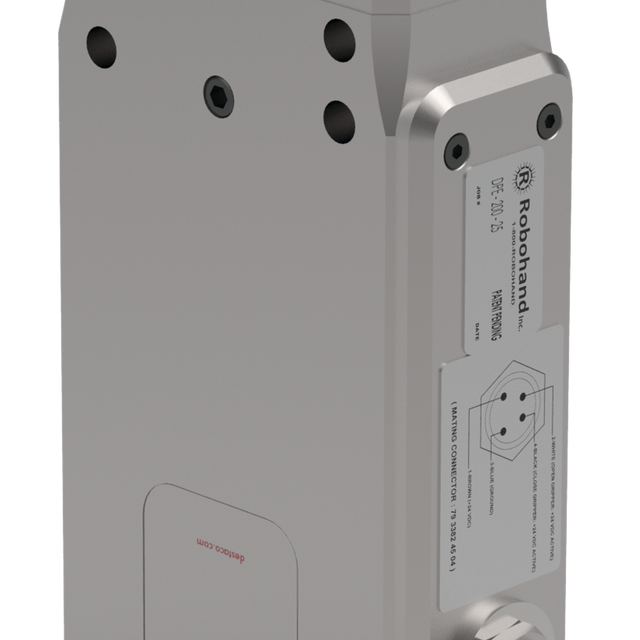

DESTACO DPE-200-25 2 JAW ELECTRIC PARALLEL GRIPPER
SKU: DE-STA-CO-DPE-200-25
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO DPE-200-25 2 JAW ELECTRIC PARALLEL GRIPPERElectric, 2-Jaw Parallel Grippers Tested for 20+ Million Cycles - DPE Series. With simple plug & play operation, no programming tuning or adjusting is required. Light Switch simplicity in a compact design for easy setup and no external control board.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO DPE-200-25 2 JAW ELECTRIC PARALLEL GRIPPER
With simple plug & play operation, no programming tuning or adjusting is required. "Light Switch" simplicity in a compact design for easy setup and no external control board.
- Fast actuation (0.25 seconds up to 150 PPM), 25 mm stroke and 111N / 25 lbf grip force
- 20+ million cycles with zero maintenance and 100% duty cycle
- Electrically Actuated: 24 VDC power plus discrete input for open/close operation. "Light Switch" simplicity for easy operation
Imperial or Metric Product | Imperial |
Grip Force (N) | 111 |
Grip Force (lbsf) | 25 |
Stroke (mm) | 25.0 |
Stroke (in) | 0.980 |
Voltage (VDC) | 24 |
Temp Range Standard | 5‚° to 60‚°C (40‚° to 140‚°F) |
Actuation (Open/Closed) (Sec) | 0 |
Accuracy (‚±mm) | 0.050 |
Repeatability (‚±mm) | 0.025 |
Maximum Finger Length (mm) | 76 |
Maximum Finger Length (in) | 3.00 |
Power Requirements (Watts) | 3 |
Protection Class | IP 54 |
Product Type | 2 Jaw Parallel |
Direct Connect | Yes |
Clean Room | 100 |
Clean Room with Scavange | 10 |
Jaw Operation | Synchronous |
Spring Assist | No |
Weight (kg) | 0.53 |
Weight (lb) | 1.16 |
Product Series Description | Electric Gripper |
Number of Jaws | 2 |
Product Function | Gripping |
Product Family | Grippers |
Product Group | electric parallel grippers |
Brand | Robohand |
Distributor Group | Robohand Gripping Solutions |
