Brand: DESTACO

DESTACO CPI-140-25-TSA 140 to 190 mm swivel arm 25mm bore

SKU: DE-STA-CO-CPI-140-25-TSA
MPN: CPI-140-25-TSA

$336.73
Unit price per
Save $38.91

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO CPI-140-25-TSA 140 to 190 mm swivel arm 25mm bore

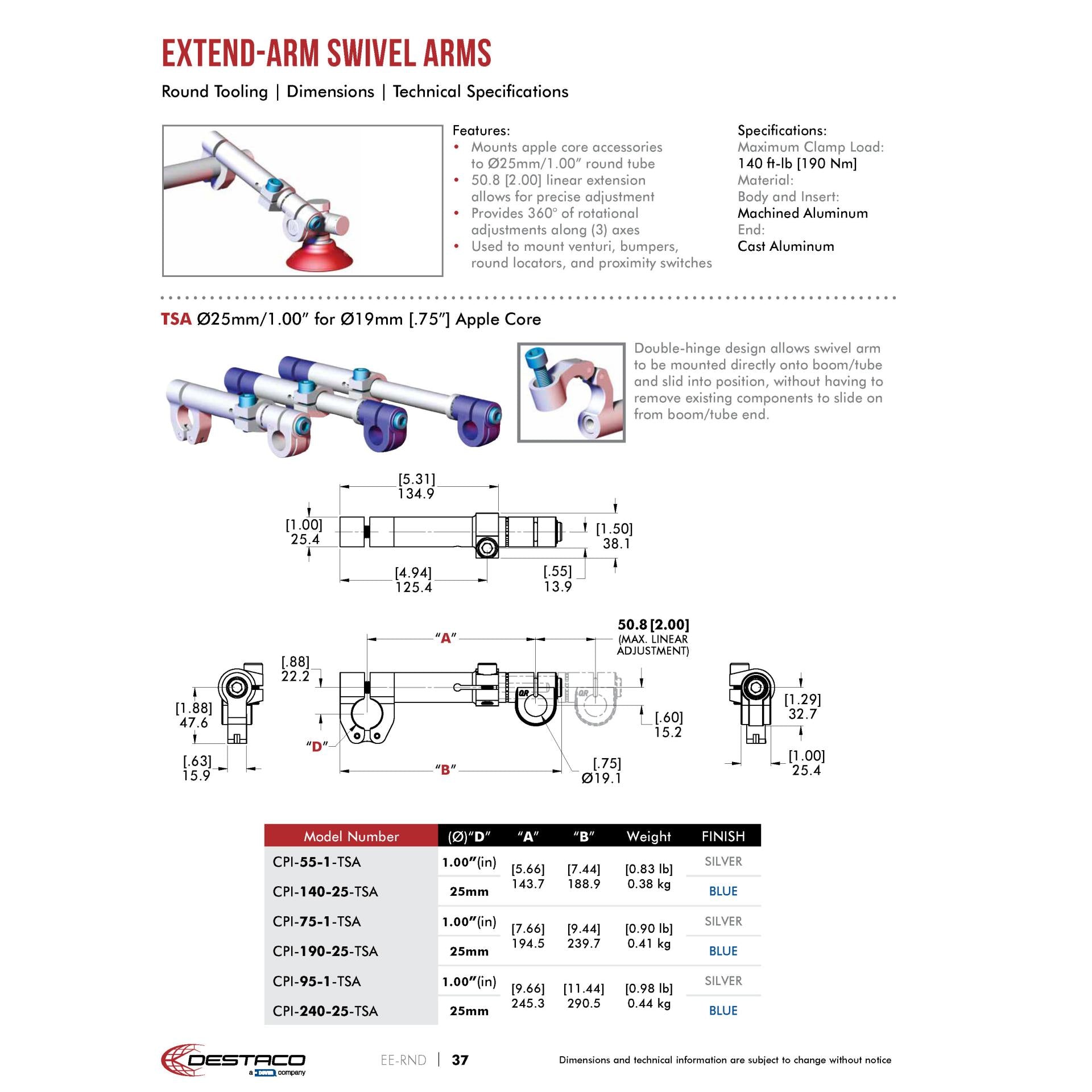

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-140-25-TSA 140 to 190 mm swivel arm 25mm bore

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts 19.1 mm (0.75") apple core accessories to 25 mm round tube
50.8 mm linear extension allows for precise adjustment
Provides 360‚° of rotational adjustments along (3) axes
Used to mount venturi, bumpers, round locators, and proximity switches

Apple Core (mm)	19.0
Apple Core (in)	0.750
Tube Diameter (mm)	25
Tube Diameter (in)	0.98
Length (mm)	143.7
Length (in)	5.660
Material	Aluminum
Finish	Blue
Maximum Static Clamp Load (Nm)	190
Maximum Static Clamp Load (ft lb)	140
Product Type	Swivel Arm, "Extend Arm"
Tube Size	25 mm
Maximum Linear Adjustment (mm)	50.8
Maximum Linear Adjustment (in)	2.00
Weight (kg)	0.38
Weight (lb)	0.83
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	round tooling
Apple Core Size	19
