Brand: DESTACO

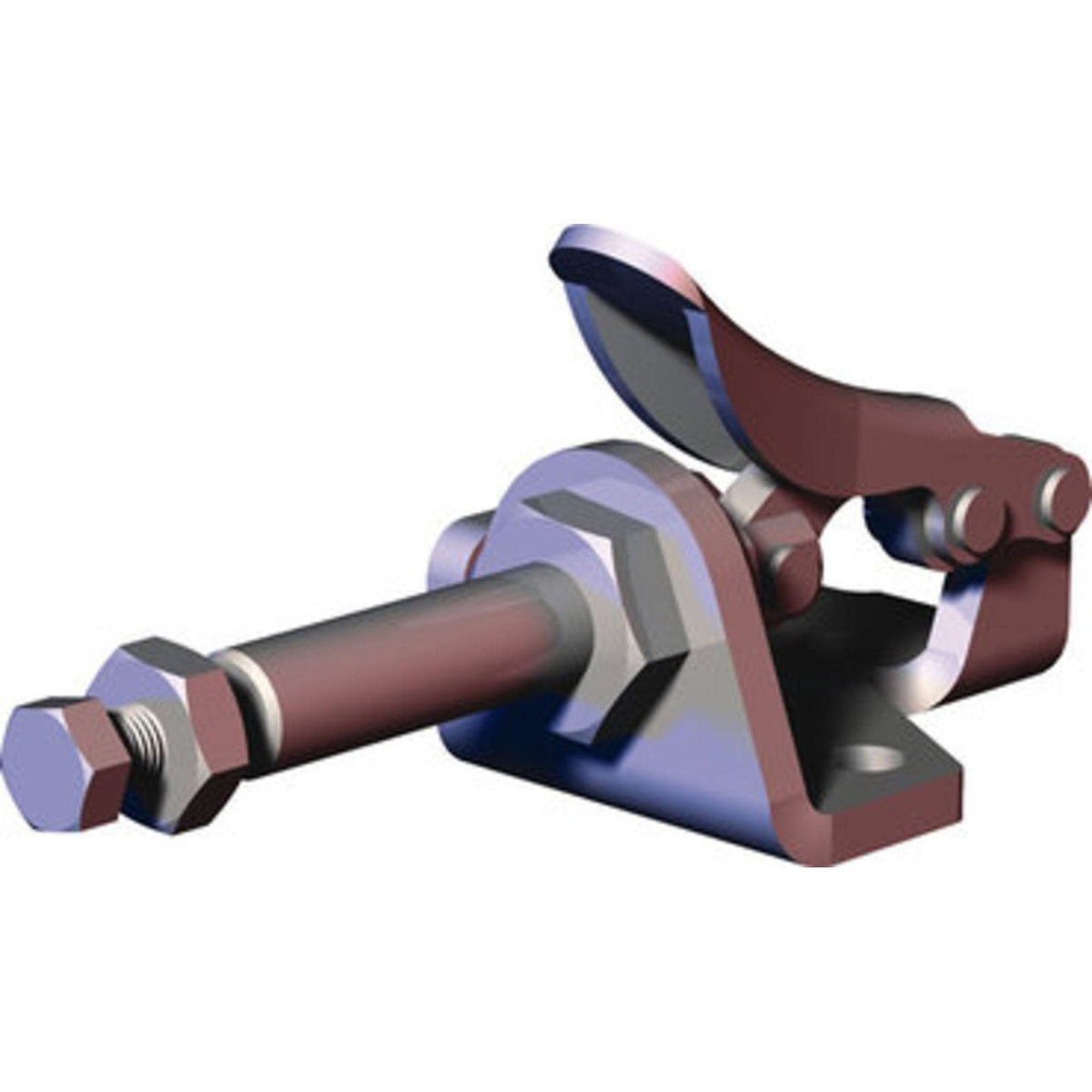

DESTACO 6001-SS STRAIGHT LINE PLUNGER CLAMP
SKU: DE-STA-CO-6001-SS
MPN:
In-Stock: 17
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 6001-SS STRAIGHT LINE PLUNGER CLAMP
The DESTACO 6001-SS STRAIGHT LINE PLUNGER CLAMP offers 50% more holding capacity than the 601 model while maintaining the same compact size. With the added feature of over-center locking in both extended and retracted positions, this clamp provides superior security.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 6001-SS STRAIGHT LINE PLUNGER CLAMP
Heavier duty version of model 601 with 50% more holding capacity while keeping the same envelope as the 601. Locks over-center in both extended and retracted positions provided the handle is allowed to fall below the mounting plane. Now available with #
- Stainless Steel
- The base can be side-mounted
- #8-32 thread
- 50% more holding capacity than model 601.
- Mounting pattern interchangeable with model 601
| Imperial or Metric Product | Imperial |
| Maximum Holding Capacity (lbsf) | 150 |
| Plunger Travel (in) | 0.63 |
| Plunger Height (in) | 0.500 |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 14:1/25:1 |
| Plunger Thread | #8-32 |
| Available | Yes |
| Standard Material | Stainless Steel |
| Toggle Lock Plus | No |
| Base Mounting Style | Flange |
| Plunger | Round |
| Spindle (Recommended) | 205943 |
| Spindle Included? | Yes |
| Preferred Market | NA/SA |
| Product Type | Standard |
| Weight (lb) | 0.11 |
| Product Series Description | Straight Line Action Clamp |
| Product Function | Clamping |
| Product Family | Manual Clamping |
| Product Group | Straight-line Action Clamps |
